AI-generated configuration illustration
Tank arrangement

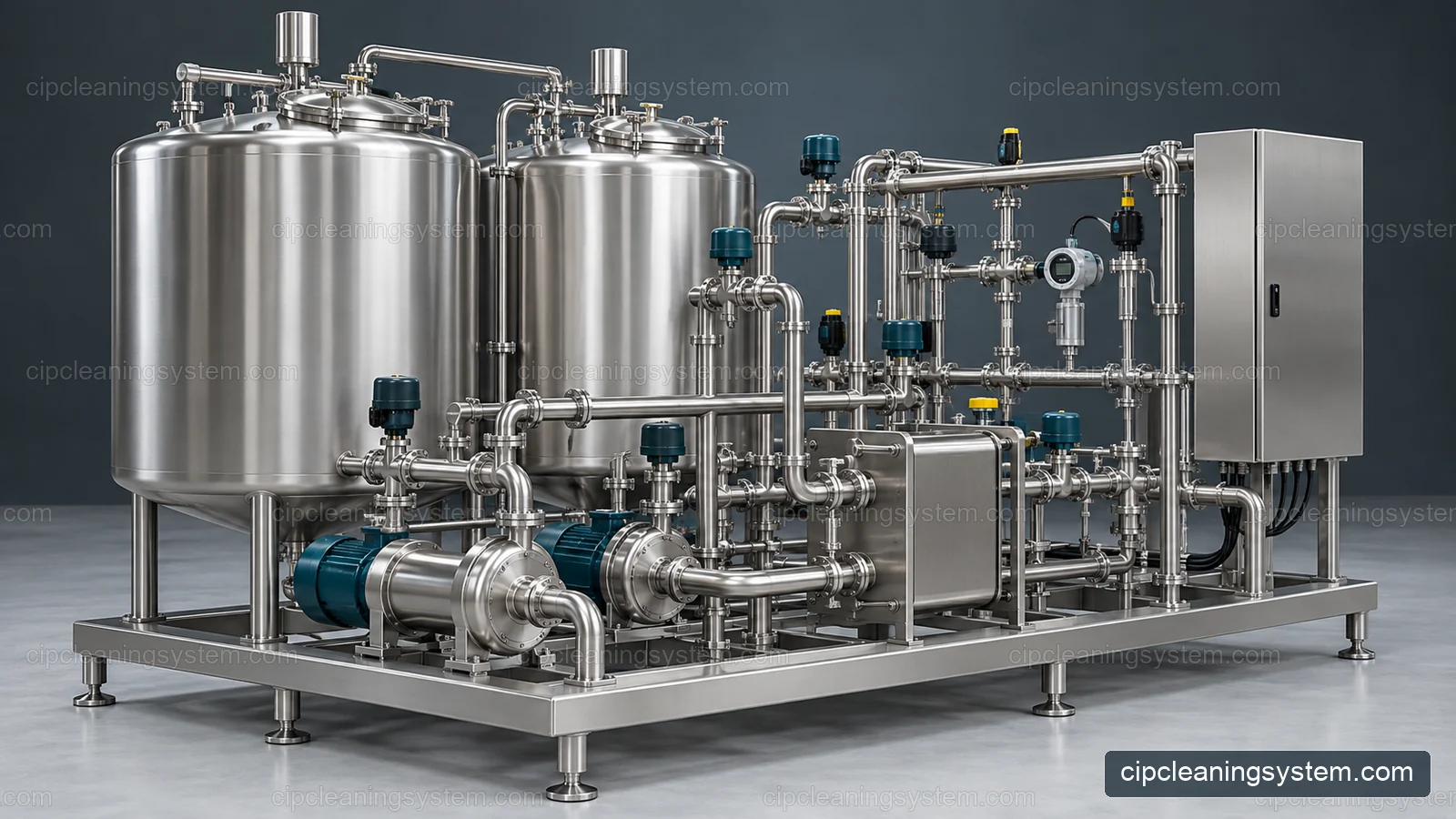

Two-tank CIP system
A compact arrangement when the cleaning sequence can share two defined storage duties.
Explore configuration ↗CLEAN-IN-PLACE / FOOD & BEVERAGE
CIP cleaning systems.
Built around
your process.
Tanks, pumps, heating, valves and controls—one coordinated cleaning circuit. Explore the right configuration for your equipment, from a local skid to a connected multi-circuit system.
New installationsProcess integrationExisting-system retrofit
CIP SYSTEM CONFIGURATIONSUPPLY → CIRCUIT → RETURN
01 Prepare & heat02 Circulate & clean03 Monitor & return
Start with the duty. Choose storage, installation, controls and return policy separately.
Compare configurations ↗FIND YOUR CONFIGURATION
A cleaning system.
Not just a tank count.
Each arrangement answers a different installation or operating need. Begin with the equipment to clean and the sequence it requires.
AI-generated configuration illustration
Tank arrangement

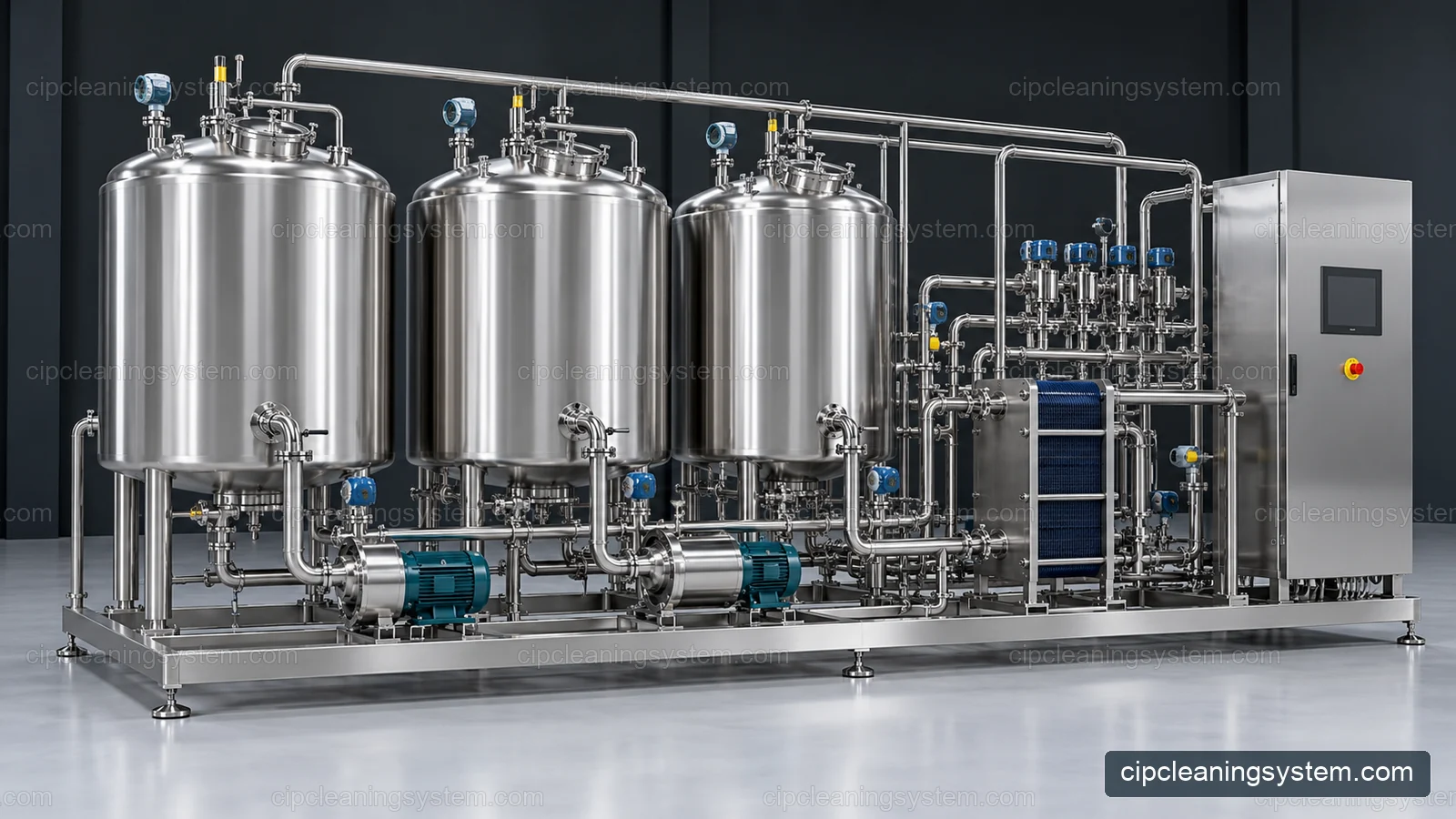

Three-tank CIP system
Separate storage duties for a cleaning sequence that needs more than one medium available.
Explore configuration ↗AI-generated configuration illustration
Installation
Mobile CIP skid
Move a reviewed cleaning arrangement between connection points instead of building permanent headers.
Explore configuration ↗HOW CLEAN-IN-PLACE WORKS
Follow the liquid.
Review the whole loop.
CIP circulates selected cleaning media through equipment designed for in-place cleaning. The supply conditions, equipment path and return behavior must work together.
Understand the CIP process ↗- 01
Prepare & heat
Prepare the assigned medium and establish the required supply conditions.
- 02
Clean the selected circuit
Control the path through the pipework, vessel, exchanger or filling system.
- 03
Assess the return
Route the returning liquid to qualified recovery or controlled discharge.
- 04
Rinse & verify
Complete the agreed sequence and review the evidence for the actual duty.
CLEANING APPLICATIONS
Your product changes
the cleaning question.
Explore the equipment boundaries and site information that matter in your process area.
01
Dairy processing
Dairy cleaning connects the product-contact equipment with a defined cleaning sequence.
Explore the application ↗02Juice & beverage processing
A juice or beverage cleaning scope should follow the actual product route from tanks and blending equipment through thermal processing and filling.
Explore the application ↗03Brewing & fermentation
Brewing installations contain several cleaning duties with different equipment boundaries.
Explore the application ↗04Sauces & liquid foods
Sauces and liquid foods can leave residues that differ from those in a clear beverage.
Explore the application ↗A CLEARER EQUIPMENT DISCUSSION
Define the scope.
Get a useful proposal.
Talk to us about the cleaning duty, connections and controls you need. A clear brief makes it easier to compare the proposed equipment and identify what belongs to site installation.
Send your requirements ↗Choose by application
Pipework, vessels, exchangers and fillers need different cleaning and return arrangements.
Compare the complete duty
Storage, circulation, heating and automation are reviewed together.
Make interfaces clear
Identify utilities, production isolation, plant controls and site installation responsibilities.
Plan the acceptance work
Agree the measurements, commissioning checks and cleaning evidence for your equipment.
BUYER’S GUIDE
Know what to send.
Know what to compare.
Choose the arrangement. Then size the duty.
A CIP specification combines several independent decisions. Use this comparison to describe the arrangement you need without treating tank count as a capacity rating.
Compare system options ↗Size the complete path, not just the skid.
Tank working inventory, circulation duty and heating load answer different questions. A useful sizing review connects them to the actual equipment and cleaning sequence.
Prepare sizing inputs ↗A useful quotation starts with a defined scope.
A price is meaningful when the equipment duty, interfaces and responsibilities are comparable. These are the scope items to settle before reviewing a configured CIP proposal.
Understand cost factors ↗YOUR NEXT STEP
Let’s define your CIP system.
Tell us what you clean, how many circuits connect and what must run together. Start with the information you have.
SOIL FIRST · VERIFIED RETURN CONDITIONS
Three cleaning problems that need different checks
Why does a milk pipeline keep developing deposits?
Milk residues can combine organic soil with mineral deposits. Start by checking whether the deposit is heat affected, mineral rich, or mixed; then verify the detergent programme with the chemical supplier. Alkaline and acid stages address different soil mechanisms and need validated sequencing.
Compare actual return temperature, detergent concentration, flow and contact time with the accepted cycle. A hot supply tank does not prove that the furthest branch received the same conditions. Check dead legs, failed valves, drainage and gasket condition.
How should a juice line address pectin-rich residue?
Recover product promptly, avoid letting pulp dry in the circuit and examine whether screens or valve seats retain fibres. Confirm that the cleaning solution reaches each flow path. A chemistry that works on clear juice may need review for a pectin-rich puree.
Test the actual deposit with the detergent supplier before changing concentration or adding an enzyme step. Check removal visually where accessible and use the site's validated residual-soil and hygiene tests. A clear return stream alone is insufficient evidence.
Why is tomato sauce still left in a tank?
Inspect the underside of agitators, baffles, manways and outlet pockets. Tank coverage and jet impact matter as well as temperature. Confirm the cleaning head's pressure and flow at the head, not only the pump discharge.
Recover viscous product, remove large retained matter as the equipment procedure requires, and verify return capacity so the tank does not flood. Validate coverage and inspect difficult locations before accepting the cycle.
What to record before changing a recipe
Product and soil description; time before cleaning; equipment drawing; supply and return flow; temperatures; conductivity or measured concentration; cycle time; rinse endpoint; and the acceptance-test results. Keep incompatible chemicals separated and use the equipment and detergent instructions.
Technical reference: Tetra Pak Dairy Processing Handbook — cleaning of dairy equipment. Juice and sauce checks above are engineering assessment questions; no universal chemical recipe or sanitation guarantee is stated.
